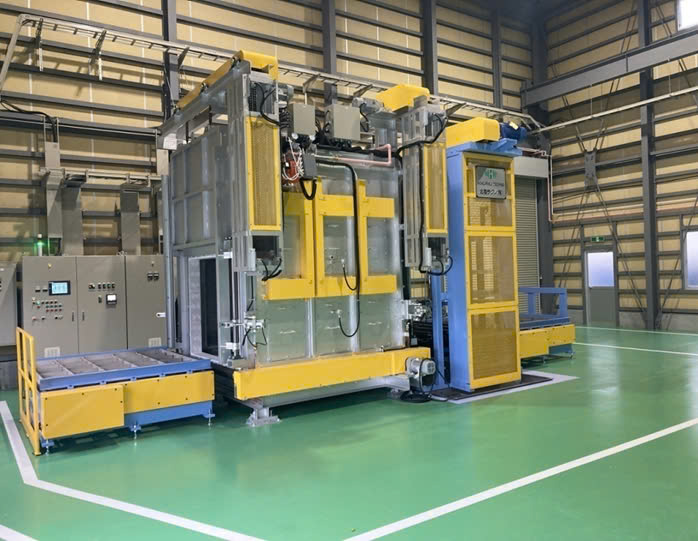

T6 heat treatment furnace for aluminum and magnesium castings.
| Amount processed per time | 384 kg/36 minutes (cycle) |
|---|---|
| Solution heat treatment temperature | 500°C (MAX 520°C) |
| Aging temperature | 180℃～230℃ |
| Time to submerge | 20 seconds |
| Furnace temperature accuracy | ±5°C |
| Quenching water bath temperature | 60℃±5℃ |
| Heating method | Gas combustion hot air circulation type |
| In-furnace transfer method | Roller drive system |
| Furnace effective dimensions | 1000W x 1500L x 1250H |
|---|---|
| Processing amount (MAX) | Product 30kg + Rack 60kg |
| Solubilizing temperature | 420℃～560℃ |
| Annealing temperature | 300℃～420℃ |
| Aging temperature | 100℃～250℃ |
| Furnace temperature accuracy | ±5.5°C (±8°C for annealing) |
| Time to submerge | within 4 seconds |
| Quenching water bath temperature | 60℃～82℃ |
| Amount processed per time (MAX) | 500kg/basket |
|---|---|
| Solution heat treatment temperature | 480℃～530℃ |
| Aging temperature | 160℃～220℃ |
| Time to submerge | less than 15 seconds |
| Furnace temperature accuracy | ±10℃ |
| In-furnace transfer method | Roller drive system |
| Burner capacity | 360,000kcal/hr (MAX) |
